Wind Dust Fence
Environmentally products wind and dust panels, made of metal mold by mechanical combination punching, pressing, spray from. High strength, anti-aging, corrosion resistance, anti-corrosion, electrical insulation, fire retardant, can be colored, a series of excellent performance and long service life, and maintenance-free, non-operating costs.

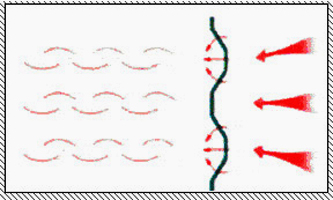

Wind and dust wall is most effective to solve the dust pollution in technology. Simple structure, and has very good anti-corrosion, anti-aging ability, and therefore a longer service life windbreak, generally up to 10 years. Metal Wind Dust Network are generally anti-static spray, usually does not cause dust adhesion, after rain washed look, post-basic need to maintain, in order to achieve the best effect of wind and dust, wind Wind Dust Network optimum structure should be a round structure, and wind wall height must be formed to cover the effect on the yard.
Shears Bending: shearing and bending, is an important aspect of production, advanced processing equipment determine the quality of the merits of the product.
Punching: windbreak net is the second part of the production, professional production workers for the processing of high-quality punching your product

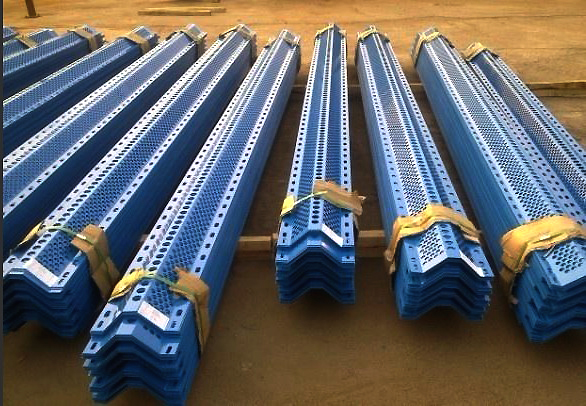

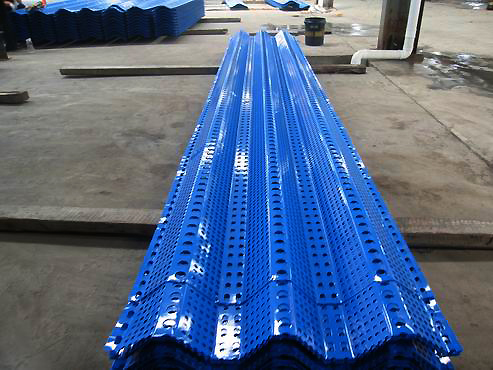

The third part of windbreak: the: Forming windproof processing forming equipment, there is bimodal and triple peak continuous molding equipment, windbreak net length can be 10 meters or more.
Cleaning: Wind Dust Network produced the fourth part, which is to prepare for the back of the electrostatic spray, cleaning cleansing effect a direct impact on the quality of surface spray.
Electrostatic spraying: Wind Dust Network is the fifth part of the surface of the powder spraying the product to withstand harsh environments without corrosive rust.
Wind Dust Fence Application

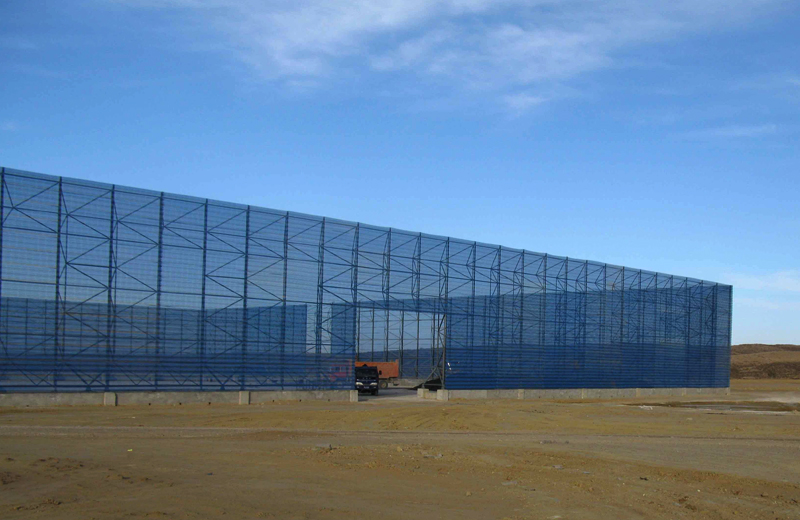

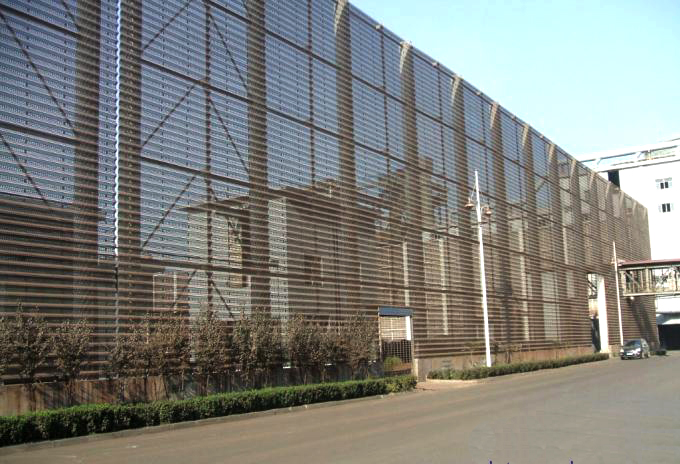

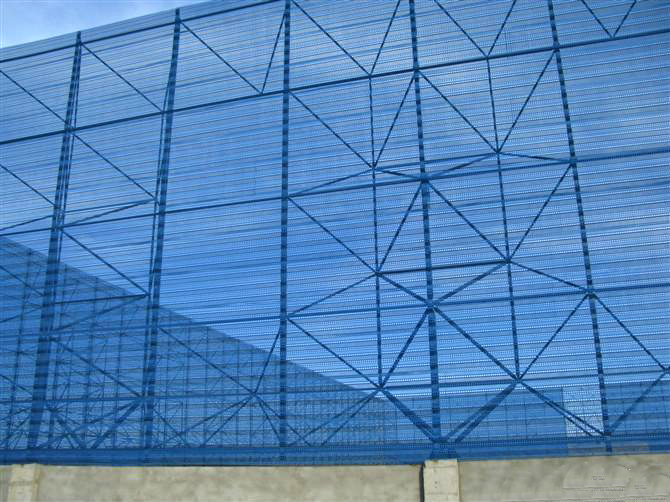

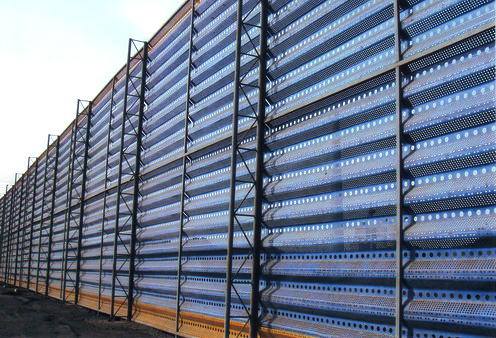

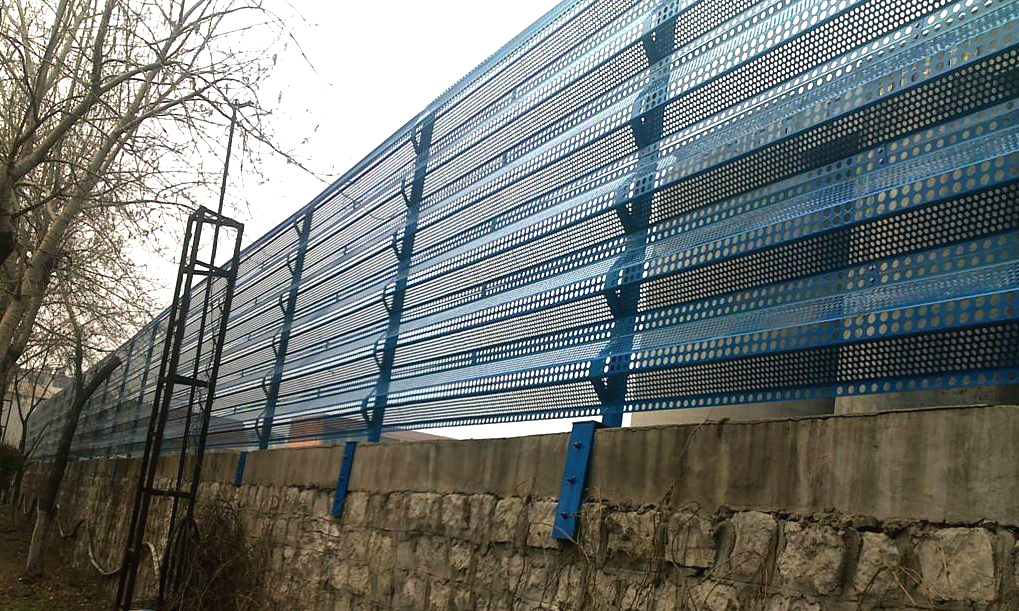

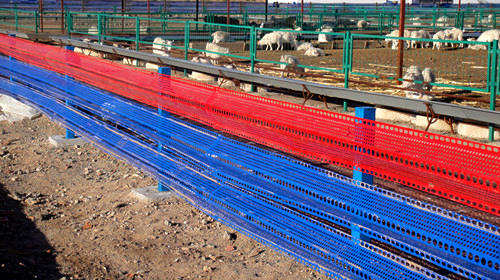

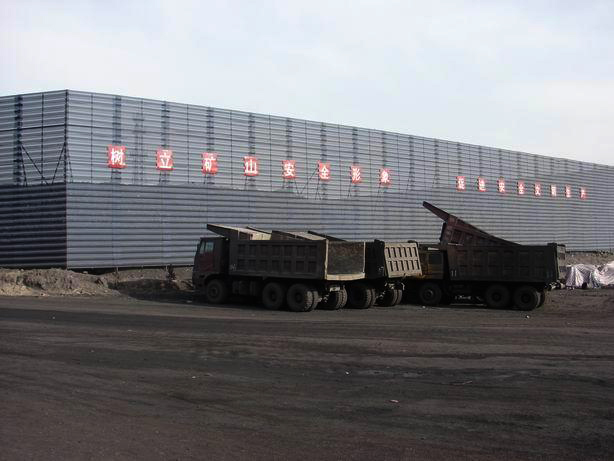

Windbreak for coal mines, coking plants, power plants and other factories enterprise storage coal plants; ports, terminals and storage coal plants of various stockyard; iron and steel, building materials, cement and other enterprises of various open-air yard dust suppression; crops windproof , desertification weather dust and other harsh environments; railways, highways coal loading station coal yard, construction sites, road dust, etc. on both sides of the highway. Single wall of wind and dust Dust effect of up to 65 to 85 percent, double the effect of wind and dust walls up to 95%.
Wind Dust Fence Specification
1, anti-ultraviolet (anti-aging) product surface through spray, can absorb the sun's ultraviolet rays, reducing the oxidation rate of the material itself, the product has a good anti-aging performance, life improved. Meanwhile UV through low, avoiding sunlight in material damage.
2, flame retardant because it is a metal plate so have a good flame resistance, fire and safety can meet production requirements.
3, high intensity impact products that can withstand hail (strong wind) impact. Impact strength test detected in the sample above, a steel ball having a weight of 1kg, 1.5 meters from the vertex of the peak height of free fall, and the product does not break through the hole.
4, anti-static surface through electrostatic spray after by sunlight, can attach to the surface of the organic contaminants oxidative decomposition products, in addition to its super-hydrophilic so easy to be rained dust, play self-cleaning effect, no maintenance costs.

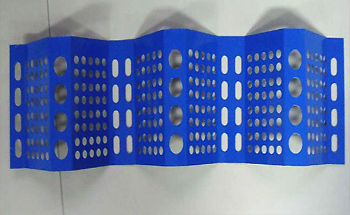

Trimodal Dust board
| Width |
Peak height |
Substrate thickness |
Product Status |
| 910mm |
70mm |
0.4mm-1.5mm |
1. substrates as cold plate, galvanized plate, galvanized plate electrostatic powder coating.
2. substrates of color-coated, galvanized sheet, not a surface treatment.
3. products color and length according to custom design requirements. |
| 810mm |
80mm |

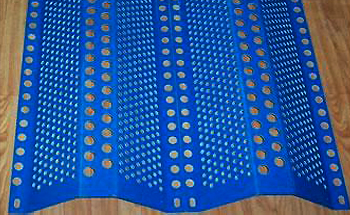

Bimodal Dust board
| Width |
Peak height |
Substrate thickness |
Product Status |
| 900mm |
93mm |
0.6mm-1.5mm |
1. substrates as cold plate, galvanized plate, galvanized plate electrostatic powder coating.
2. substrates of color-coated, galvanized sheet, not a surface treatment.
3. products color and length according to custom design requirements. |

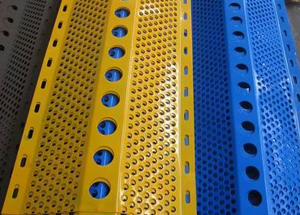

Single peak dust board
| Width |
Peak height |
Substrate thickness |
Product Status |
| 270mm |
80mm |
0.6mm-1.5mm |
1. substrates as cold plate, galvanized plate, galvanized plate electrostatic powder coating.
2. substrates of color-coated, galvanized sheet, not a surface treatment.
3. products color and length according to custom design requirements. |
| 300-305mm |
70mm |
| 450mm |
93mm |

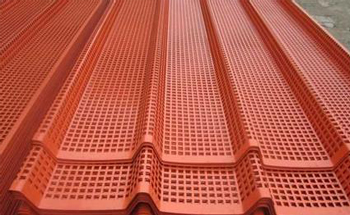

Five peaks type dust board
| Specification |
Width |
Peak height |
Substrate thickness |
Product Status |
| Type A |
940mm |
15mm |
0.6mm-1.5mm |
1. substrates as cold plate, galvanized plate, galvanized plate electrostatic powder coating.
2. substrates of color-coated, galvanized sheet, not a surface treatment.
3. products color and length according to custom design requirements. |
| Type B |
940mm |
15mm |
Wind Dust Fence Surface Treatment
Hot Dip Galvanizing
pvc
Wind Dust Fence Precautions
(1) using ordinary cold-rolled steel as the base material, sheet thickness of 0.5mm-1.5mm, the CNC equipment for punching, forming, and then double-sided high-voltage electrostatic powder coating surface anti-corrosion treatment.
(2) with a galvanized steel as the base material, sheet thickness 0.5mm-1.5mm, punching, forming by the CNC equipment, and then double-sided high-voltage electrostatic powder coating surface anti-corrosion treatment.
(3) with a painted steel as the base material, sheet thickness 0.5mm-1.5mm, punching, forming by the CNC equipment. Surface treatment is not required.
(4) with a galvanized steel as the base material, sheet thickness 0.5mm-1.5mm, the CNC punching equipment, molding. Surface treatment is not required.
(5) stainless steel sheet as the base material, sheet thickness 0.5mm-1.5mm, the CNC equipment punching, molding, surface treatment is not required.
